Alumina Combustion Boat and Dish

Alumina (Al₂O₃) has a wide application due to its versatility and low material cost. Alumina possesses a high melting point, strong hardness, and good chemical stability, making it a good material to withstand high temperature and chemical corrosion. Alumina Boats and Dishes are available in many sizes and shapes. Call for any custom production request.

Alumina Combustion Boat (99.6%, without tail and hole)

Catalogue Number	Approx. Capacity (ml)	Length		Width		Height		Price
AL-5003	3	in	mm	in	mm	in	mm	$15.40
AL-5003	3	1.97	50	0.47	12	0.39	10	$15.40
AL-5006	6	in	mm	in	mm	in	mm	$19.26
AL-5006	6	2.95	75	0.59	15	0.39	10	$19.26
AL-5020	20	in	mm	in	mm	in	mm	$25.03
AL-5020	20	3.94	100	0.79	20	0.59	15	$25.03
AL-5064	64	in	mm	in	mm	in	mm	$30.61
AL-5064	64	3.94	100	1.77	45	0.75	19	$30.61
AL-5145	145	in	mm	in	mm	in	mm	$52.71
AL-5145	145	5.91	150	2.72	69	0.75	19	$52.71
AL-5400	400	in	mm	in	mm	in	mm	$99.54
AL-5400	400	7.99	203	4.02	102	0.98	25	$99.54

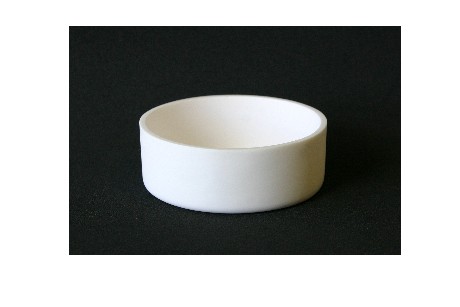

Alumina Dish (99.6%)

Catalogue Number	Approx. Capacity (ml)	Max. OD		Height		Price
AL-4035	35	in	mm	in	mm	$17.75
AL-4035	35	1.97	50	0.98	25	$17.75
AL-4060	60	in	mm	in	mm	$24.00
AL-4060	60	2.72	69	0.91	23	$24.00
AL-4120	120	in	mm	in	mm	$36.66
AL-4120	120	3.19	81	1.18	30	$36.66

For custom production & volume discount, please call (520) 514-1100
$15.00 handling fees applied for orders less than $100.00.
No minimum quantity requirements for standard products.
