Diamond Substrates
AdValue Technology offers high quality diamond substrates which excel in the most demanding applications across semiconductor, laser, optics and electronics industries.
Diamond substrates offer a multitude of exceptional features:
- Extreme hardness
- Unmatched thermal conductivity
- Extremely low thermal expansion
- Wide transmission range from UV to IR
- Remarkable dielectric properties
Diamond products for Heat Sink

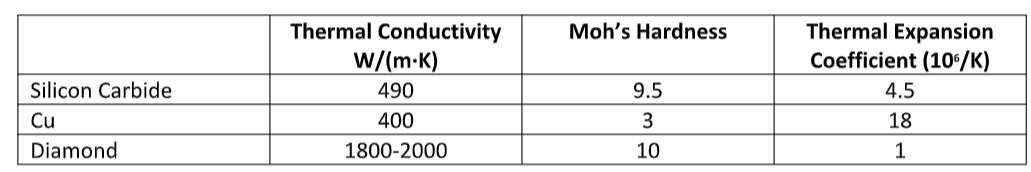

The unmatched thermal conductivity and extremely low thermal expansion coefficient of diamond makes it the ideal material for heat sink.
-

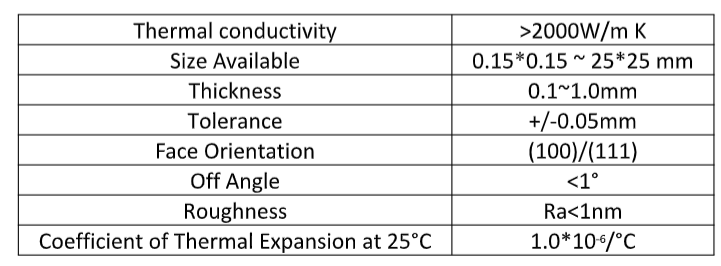

Single Crystal CVD Diamond Substrates
-

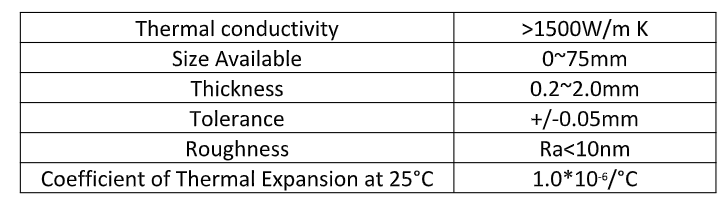

Polycrystalline Diamond Substrates
-

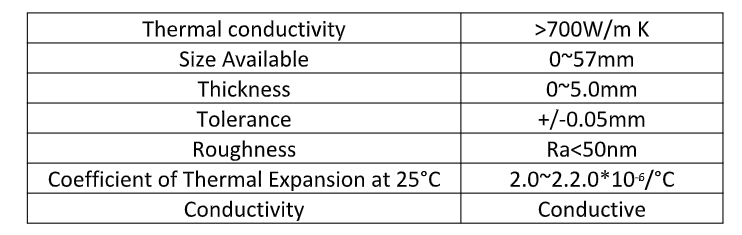

Diamond/Metal Composite Material
Diamond Products for Window
Diamond, used as window material, can effectively address the problem of traditional materials such as sapphire and Boron Nitride to improve heat dissipation and increase bandwidth. Diamond windows can significantly increase the part’s lifetime, reduce energy loss and enable lightweight structure design.
-

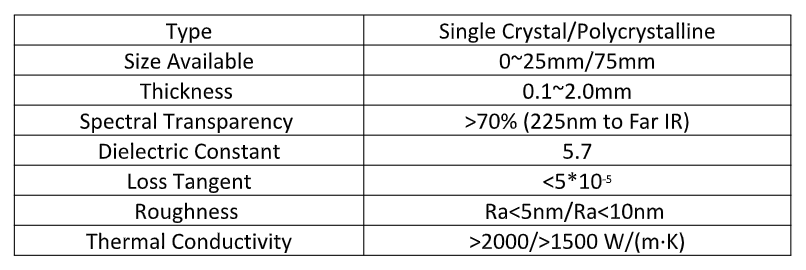

Diamond Optical Window
-
Terahertz Single Crystal Diamond Microwave Energy Transfer Window（W wave band and
above：≥75GHz）
Diamond Products for Semiconductor
Diamond single crystal products have the advantages of large band gap width, high electron saturation speed, large carrier mobility, small relative dielectric constant, strong anti-radiation damage ability, and can be used in semiconductor, detector, quantum sensing and other cutting-edge technology fields..
