Glass & Ceramics Laser Marker
LasePen® U series, the advanced Glass & Ceramics Laser Markers, are to make unique marking onto your parts, such as serial number, barcode, logo, texts and pictures. LasePen® enables a marking process that is fast, easy and consumables free.
Materials

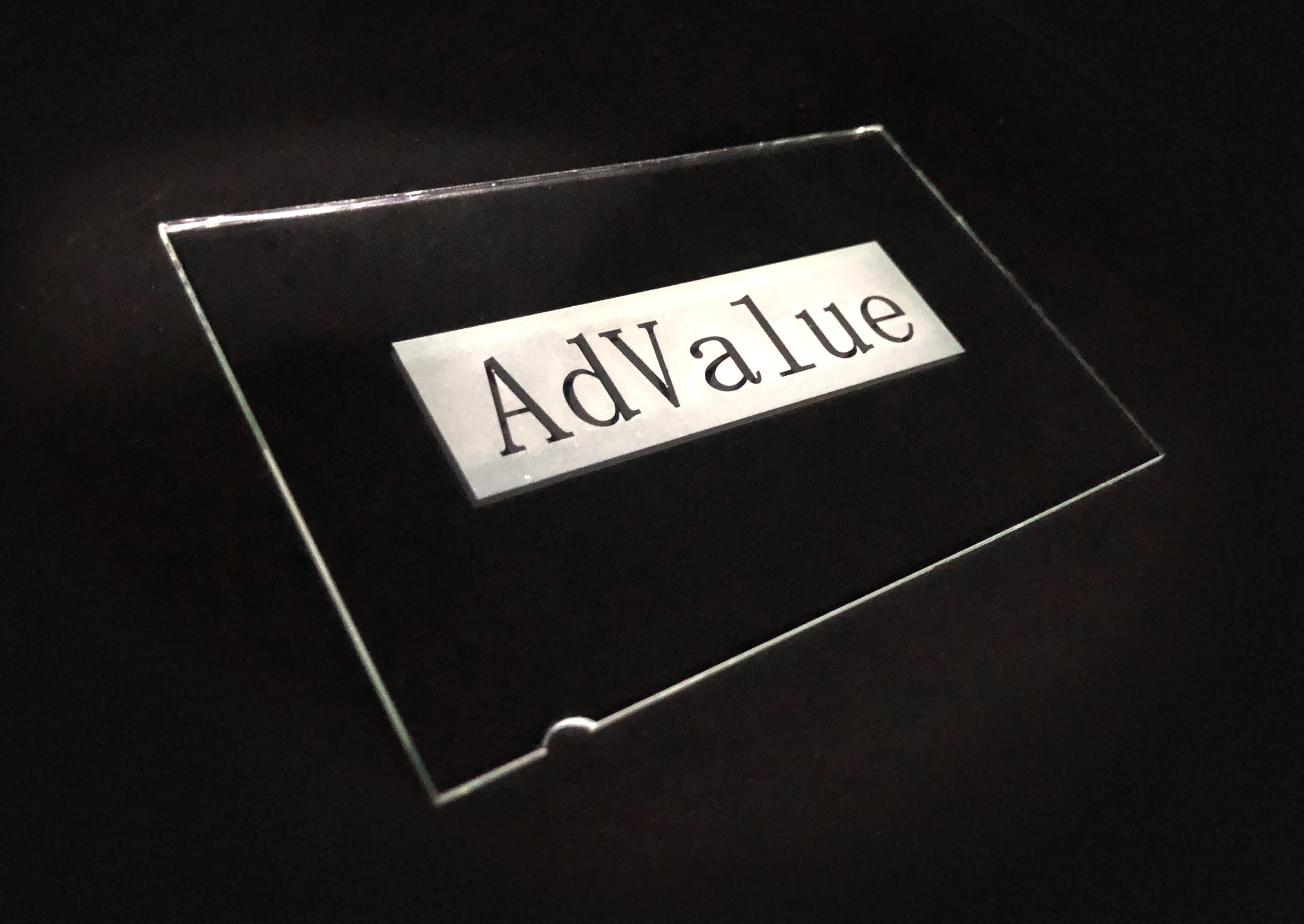

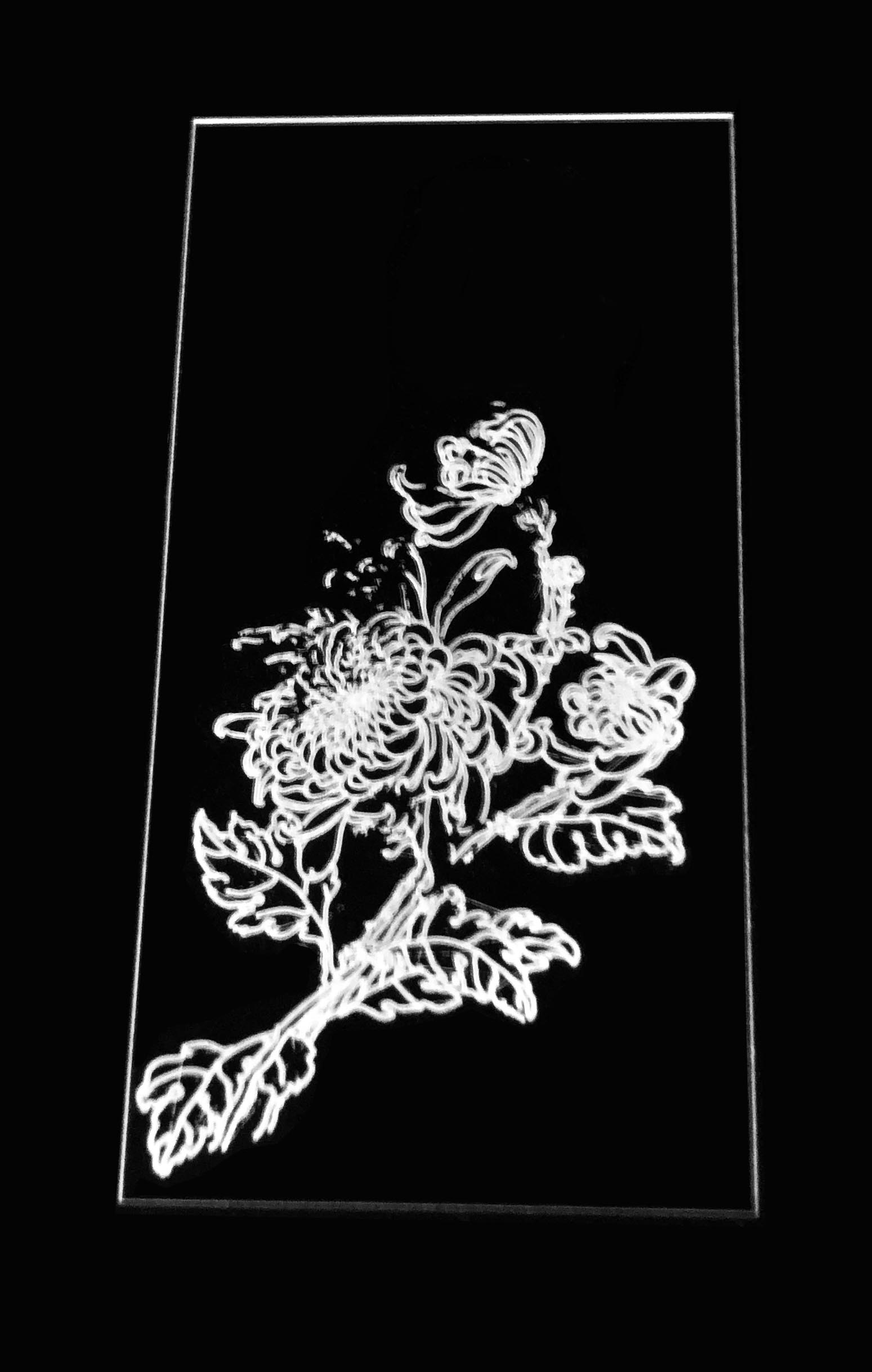

- Glasses

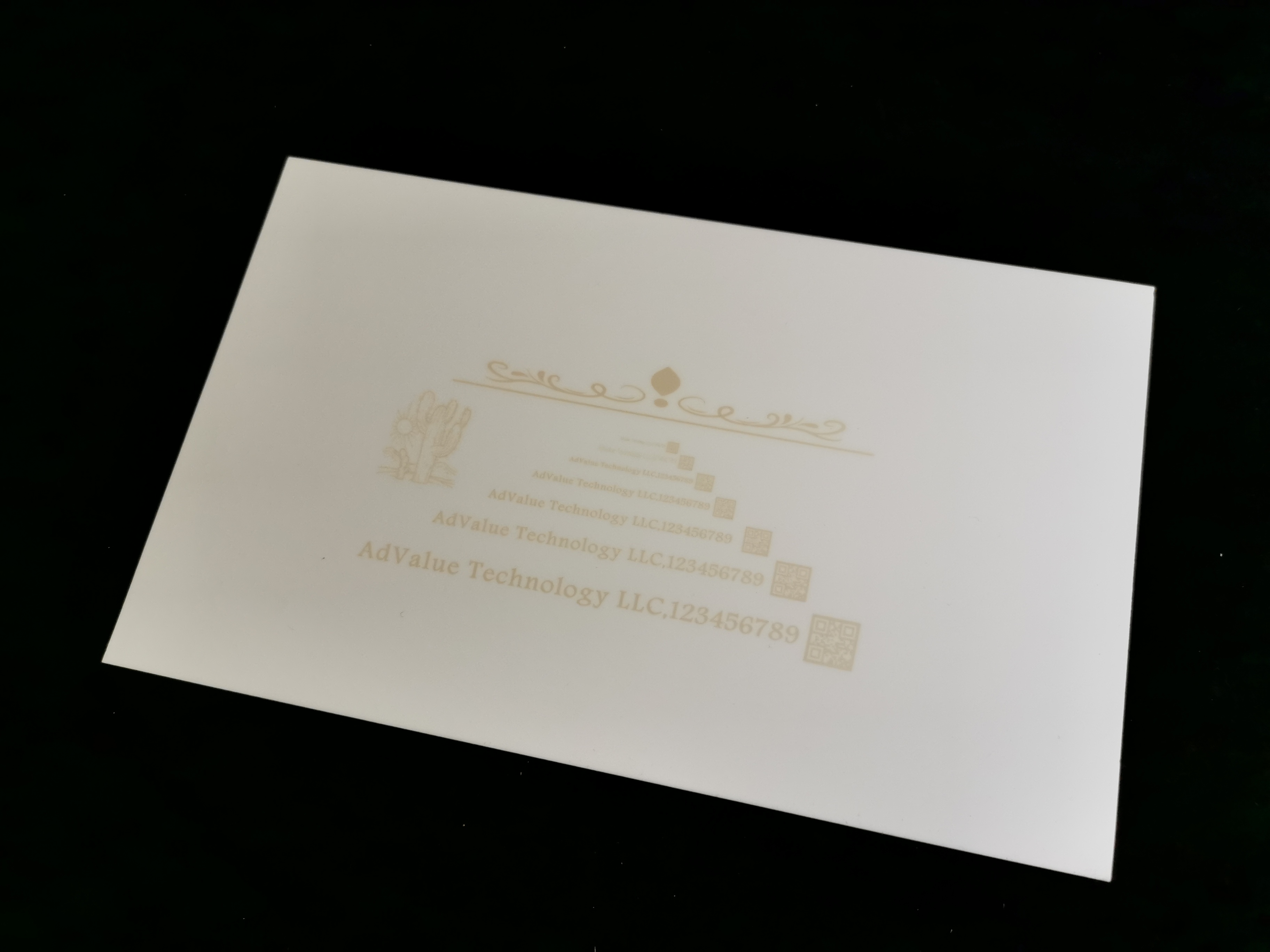

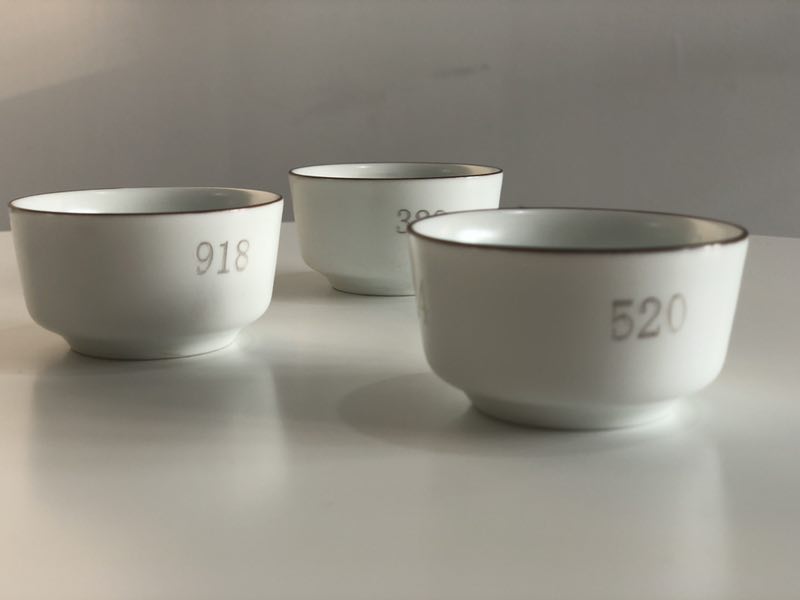

- Ceramics

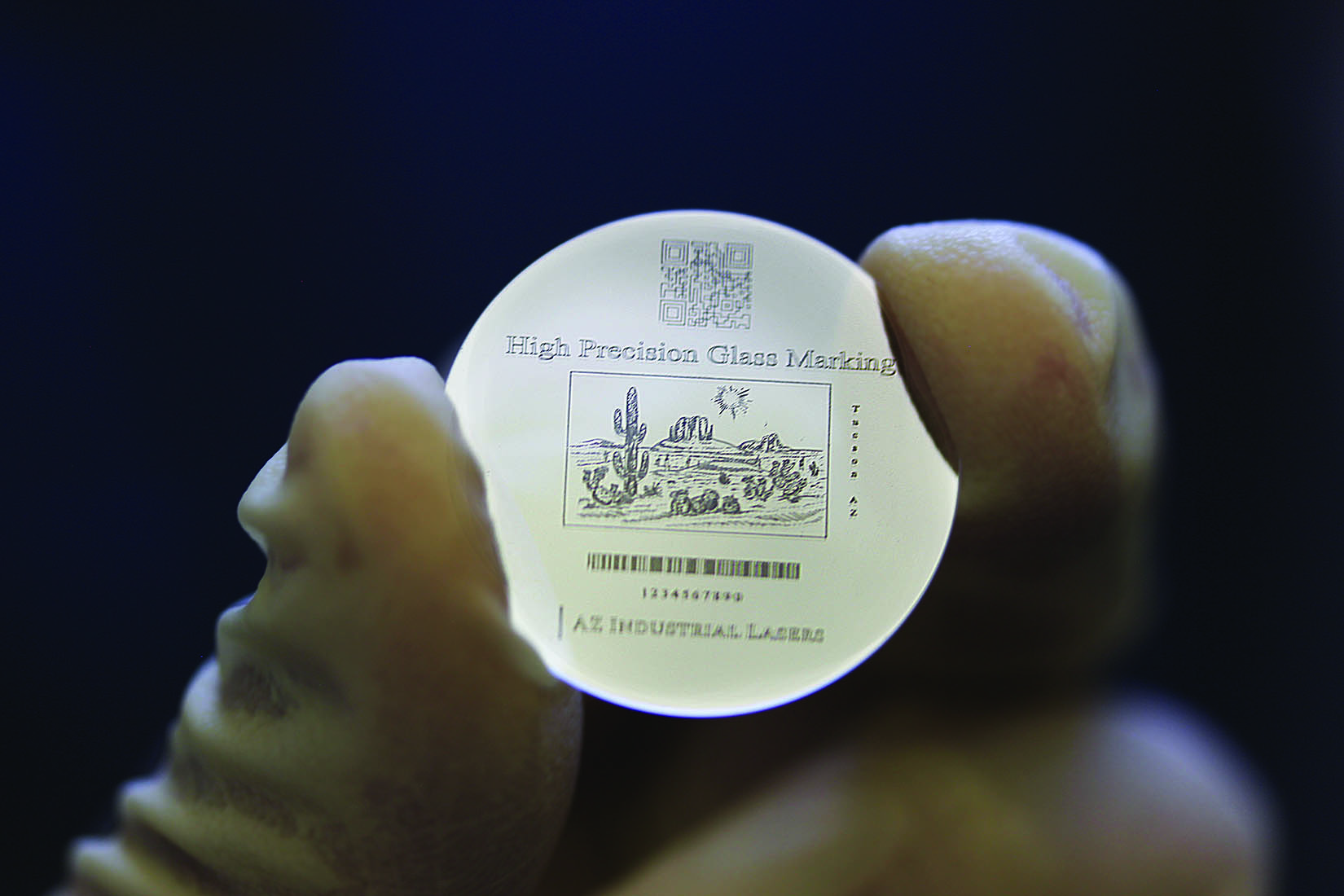

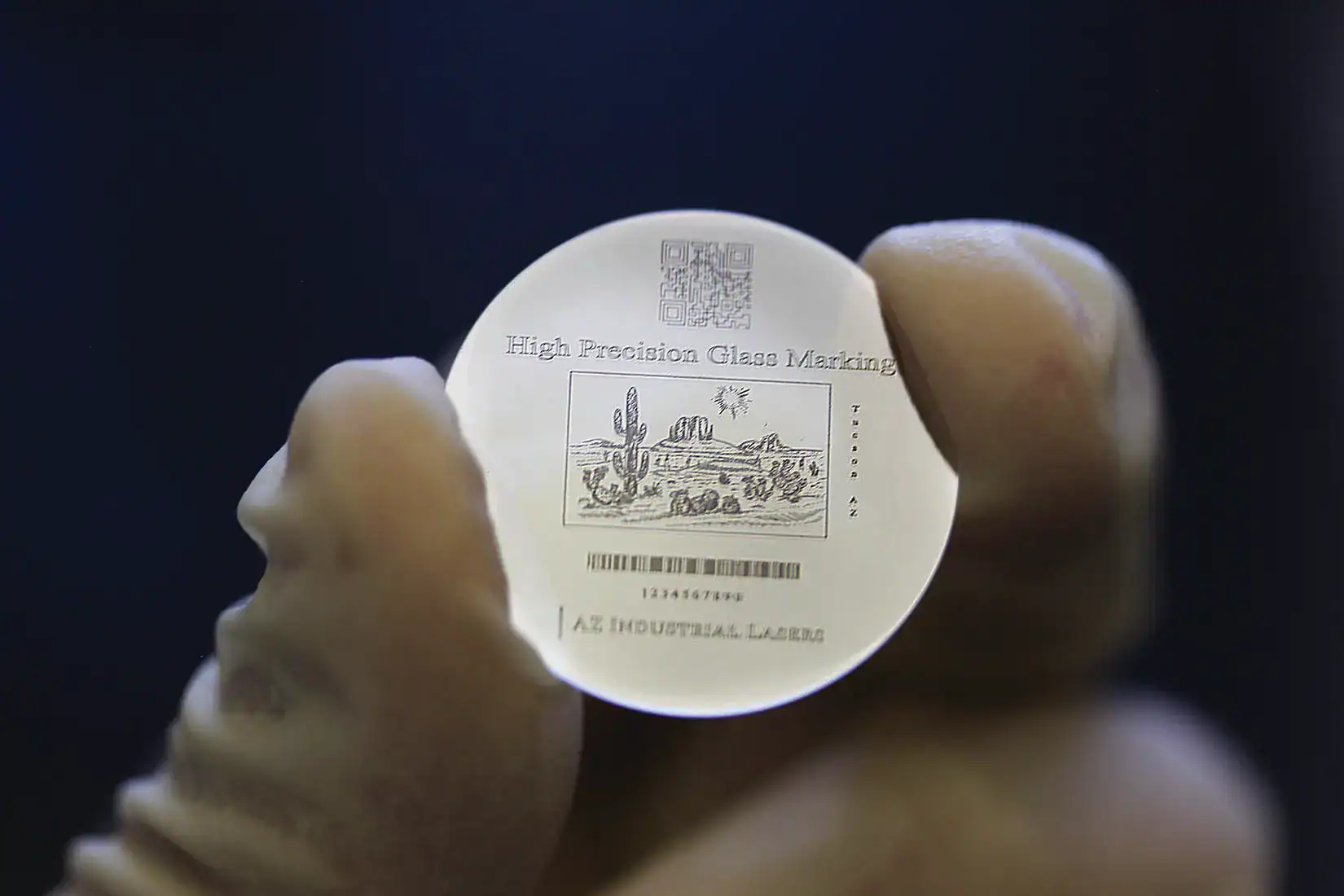

- Sapphire
- Quartz & fused quartz
- And more
Benefits Highlights
- Permanent marks
- Minimum heat affect zone with superior marking quality
- High speed & high yield
- Low operation cost
- No foreign materials, no contamination
- Environmental friendly
Instrument Configuration:
- Marking method: Laser marking
- Laser wavelength: 355nm
- Output power: 3W/5W
- Pulse repetition rate: 20-100kHz
- Laser beam control: Galvo scanning marking style
- Working area: 100 × 100 mm2 (customizable)
- Max load: ~ 50kg
- Z axis: Motorized, programmable
- Minimum line width: 0.01mm @ F=160mm
- Minimum character height: 0.2mm @ F=160mm
- Marking speed: Max. 700 mm/s @ F=163mm
- Power supply: 110V or 220V
- Cooling system: Air cooling
Models

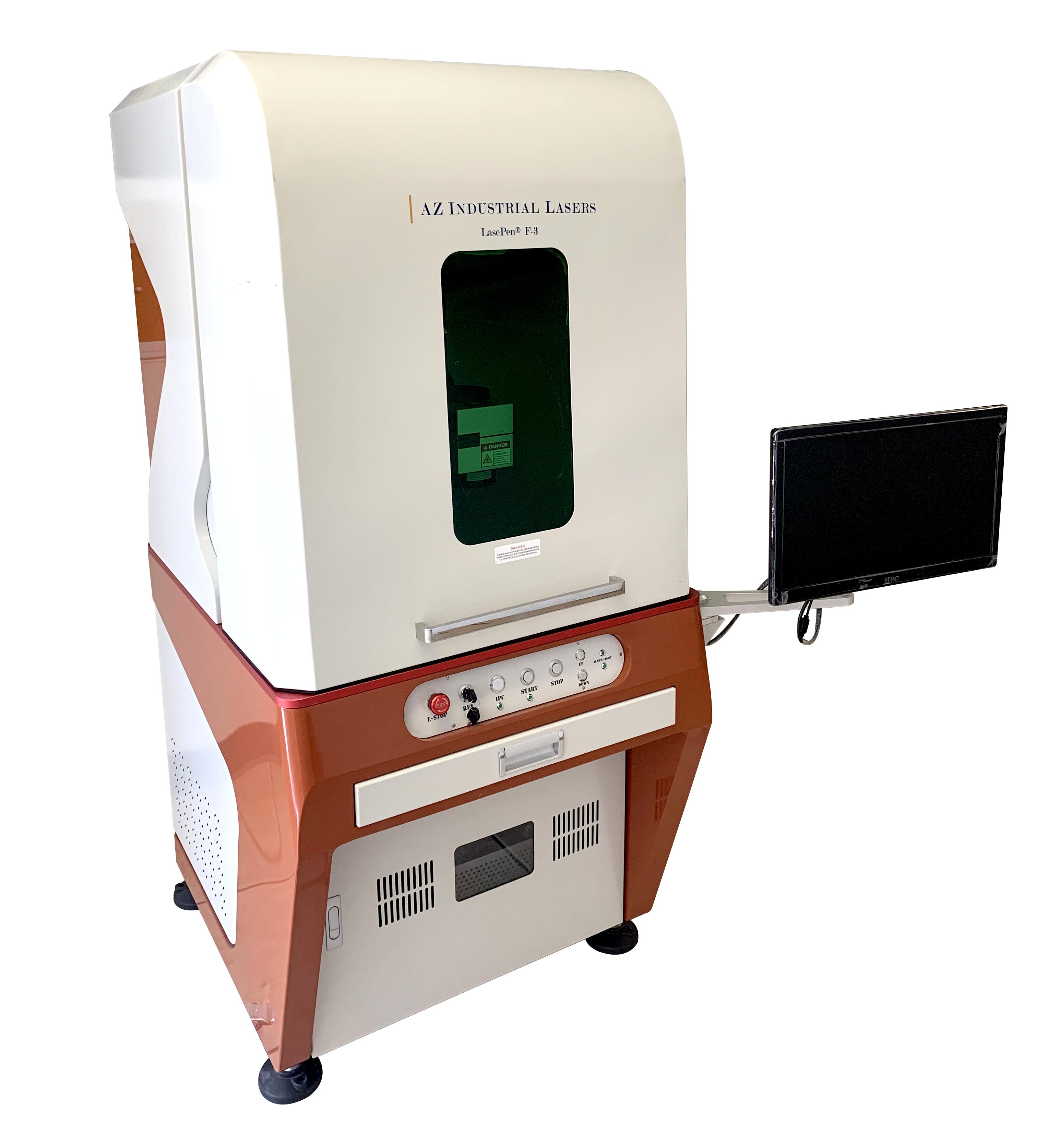

- LasePen® U3: Standard: Stand-alone Machine

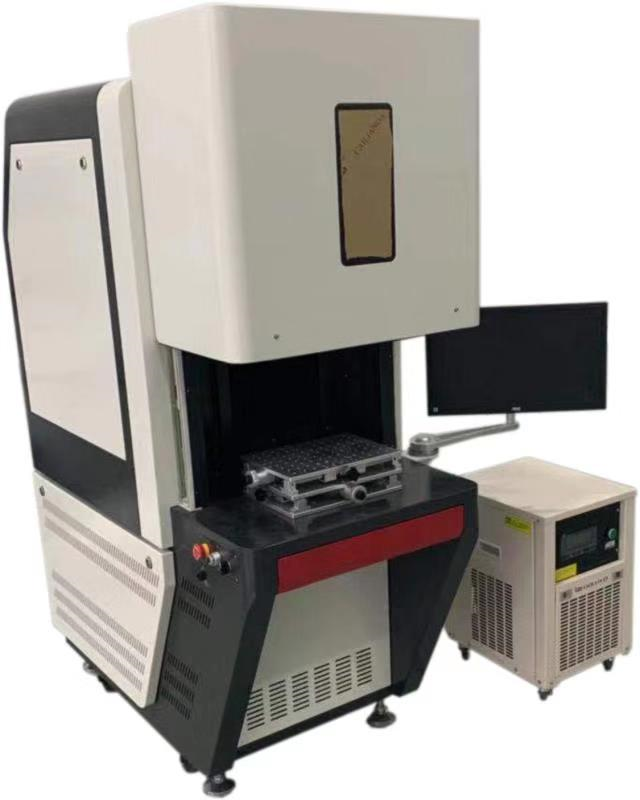

- LasePen® U-OEM: Production lines
- Custom setup and OEM available
